一个简单的防火墙小脚本：
#!/bin/bash
# 防火墙管理脚本
# 用于管理Linux firewalld防火墙
# 检查是否以root权限运行
if [ "$(id -u)" -ne 0 ]; then
echo "错误: 请使用root权限运行此脚本"
exit 1
fi
# 检查firewalld是否安装
if ! command -v firewall-cmd &> /dev/null; then
echo "错误: firewalld未安装"
echo "请使用以下命令安装:"
echo " CentOS/RHEL: sudo yum install firewalld"
echo " Ubuntu/Debian: sudo apt install firewalld"
exit 1
fi

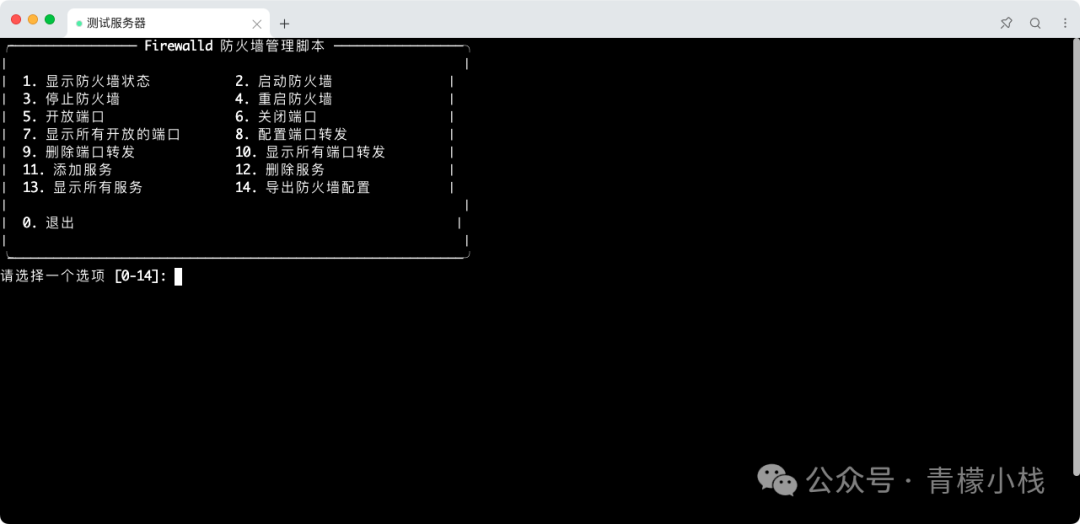

# 显示菜单
show_menu() {
clear
echo "╭───────────────── Firewalld 防火墙管理脚本 ─────────────────╮"
echo "│ │"
echo "│ 1. 显示防火墙状态 2. 启动防火墙 │"
echo "│ 3. 停止防火墙 4. 重启防火墙 │"
echo "│ 5. 开放端口 6. 关闭端口 │"
echo "│ 7. 显示所有开放的端口 8. 配置端口转发 │"
echo "│ 9. 删除端口转发 10. 显示所有端口转发 │"
echo "│ 11. 添加服务 12. 删除服务 │"
echo "│ 13. 显示所有服务 14. 导出防火墙配置 │"
echo "│ │"
echo "│ 0. 退出 │"
echo "│ │"
echo "╰────────────────────────────────────────────────────────────╯"
}
# 显示防火墙状态
show_status() {
echo "防火墙状态:"
systemctl status firewalld | grep Active
echo ""
echo "默认区域:"
firewall-cmd --get-default-zone
echo ""
echo "按任意键继续..."
read -n 1
}
# 启动防火墙
start_firewall() {
echo "正在启动防火墙..."
systemctl start firewalld
echo "防火墙已启动"
echo "按任意键继续..."
read -n 1
}
# 停止防火墙
stop_firewall() {
echo "正在停止防火墙..."
systemctl stop firewalld
echo "防火墙已停止"
echo "按任意键继续..."
read -n 1
}
# 重启防火墙
restart_firewall() {
echo "正在重启防火墙..."
systemctl restart firewalld
echo "防火墙已重启"
echo "按任意键继续..."
read -n 1
}
# 开放端口
open_port() {
echo "请输入要开放的端口号: "
read port
echo "请选择协议类型:"
echo "1. TCP"
echo "2. UDP"
echo "3. TCP和UDP"
echo -n "请选择 [1-3]: "
read proto_choice
case $proto_choice in
1)
protocol="tcp"
;;
2)
protocol="udp"
;;
3)
protocol="both"
;;
*)
echo "无效的选择，默认使用TCP"
protocol="tcp"
;;
esac
echo -n "请输入区域名称 (默认为public): "
read zone
if [ -z "$zone" ]; then
zone="public"
fi
if [ -z "$port" ]; then
echo "错误: 端口不能为空"
else
if [ "$protocol" = "both" ]; then
echo "正在开放端口 $port/tcp 和 $port/udp 在区域 $zone..."
firewall-cmd --zone=$zone --add-port=$port/tcp --permanent
firewall-cmd --zone=$zone --add-port=$port/udp --permanent
else
echo "正在开放端口 $port/$protocol 在区域 $zone..."
firewall-cmd --zone=$zone --add-port=$port/$protocol --permanent
fi
firewall-cmd --reload
echo "端口已开放"
fi
echo -n "按任意键继续..."
read -n 1
}
# 关闭端口
close_port() {
echo -n "请输入要关闭的端口号: "
read port
echo -n "请输入协议类型 (tcp/udp): "
read protocol
echo -n "请输入区域名称 (默认为public): "
read zone
if [ -z "$zone" ]; then
zone="public"
fi
if [ -z "$port" ] || [ -z "$protocol" ]; then
echo "错误: 端口和协议不能为空"
else
echo "正在关闭端口 $port/$protocol 在区域 $zone..."
firewall-cmd --zone=$zone --remove-port=$port/$protocol --permanent
firewall-cmd --reload
echo "端口已关闭"
fi
echo -n "按任意键继续..."
read -n 1
}
# 显示所有开放的端口
list_ports() {
echo -n "请输入区域名称 (默认为public): "
read zone
if [ -z "$zone" ]; then
zone="public"
fi
echo "区域 $zone 中开放的端口:"
firewall-cmd --zone=$zone --list-ports
echo -n "按任意键继续..."
read -n 1
}
# 配置端口转发
add_port_forward() {
echo -n "请输入源端口号: "
read source_port
echo -n "请输入目标IP地址: "
read target_ip
echo -n "请输入目标端口号: "
read target_port
echo -n "请输入协议类型 (tcp/udp): "
read protocol
echo -n "请输入区域名称 (默认为public): "
read zone
if [ -z "$zone" ]; then
zone="public"
fi
if [ -z "$source_port" ] || [ -z "$target_ip" ] || [ -z "$target_port" ] || [ -z "$protocol" ]; then
echo "错误: 所有字段不能为空"
else
echo "正在添加端口转发..."
firewall-cmd --zone=$zone --add-forward-port=port=$source_port:proto=$protocol:toport=$target_port:toaddr=$target_ip --permanent
firewall-cmd --reload
echo "端口转发已添加"
fi
echo -n "按任意键继续..."
read -n 1
}
# 删除端口转发
remove_port_forward() {
echo -n "请输入源端口号: "
read source_port
echo -n "请输入目标IP地址: "
read target_ip
echo -n "请输入目标端口号: "
read target_port
echo -n "请输入协议类型 (tcp/udp): "
read protocol
echo -n "请输入区域名称 (默认为public): "
read zone
if [ -z "$zone" ]; then
zone="public"
fi
if [ -z "$source_port" ] || [ -z "$target_ip" ] || [ -z "$target_port" ] || [ -z "$protocol" ]; then
echo "错误: 所有字段不能为空"
else
echo "正在删除端口转发..."
firewall-cmd --zone=$zone --remove-forward-port=port=$source_port:proto=$protocol:toport=$target_port:toaddr=$target_ip --permanent
firewall-cmd --reload
echo "端口转发已删除"
fi
echo -n "按任意键继续..."
read -n 1
}
# 显示所有端口转发
list_port_forwards() {
echo -n "请输入区域名称 (默认为public): "
read zone
if [ -z "$zone" ]; then
zone="public"
fi
echo "区域 $zone 中的端口转发:"
firewall-cmd --zone=$zone --list-forward-ports
echo -n "按任意键继续..."
read -n 1
}
# 添加服务
add_service() {
echo -n "请输入要添加的服务名称: "
read service
echo -n "请输入区域名称 (默认为public): "
read zone
if [ -z "$zone" ]; then
zone="public"
fi
if [ -z "$service" ]; then
echo "错误: 服务名称不能为空"
else
echo "正在添加服务 $service 到区域 $zone..."
firewall-cmd --zone=$zone --add-service=$service --permanent
firewall-cmd --reload
echo "服务已添加"
fi
echo -n "按任意键继续..."
read -n 1
}
# 删除服务
remove_service() {
echo -n "请输入要删除的服务名称: "
read service
echo -n "请输入区域名称 (默认为public): "
read zone
if [ -z "$zone" ]; then
zone="public"
fi
if [ -z "$service" ]; then
echo "错误: 服务名称不能为空"
else
echo "正在从区域 $zone 中删除服务 $service..."
firewall-cmd --zone=$zone --remove-service=$service --permanent
firewall-cmd --reload
echo "服务已删除"
fi
echo -n "按任意键继续..."
read -n 1
}
# 显示所有服务
list_services() {
echo -n "请输入区域名称 (默认为public): "
read zone
if [ -z "$zone" ]; then
zone="public"
fi
echo "区域 $zone 中开放的服务:"
firewall-cmd --zone=$zone --list-services
echo -n "按任意键继续..."
read -n 1
}
# 导出防火墙配置
export_config() {
echo -n "请输入导出文件路径 (默认为 ./firewall_config.txt): "
read export_path
if [ -z "$export_path" ]; then
export_path="./firewall_config.txt"
fi
echo "正在导出防火墙配置到 $export_path..."
{
echo "===== 防火墙配置导出 ====="
echo "导出时间: $(date)"
echo ""
echo "== 防火墙状态 =="
echo "状态: $(systemctl is-active firewalld)"
echo "默认区域: $(firewall-cmd --get-default-zone)"
echo ""
echo "== 活动区域 =="
firewall-cmd --get-active-zones
echo ""
echo "== 服务列表 =="
for zone in $(firewall-cmd --get-zones); do
echo "区域: $zone"
echo "服务: $(firewall-cmd --zone=$zone --list-services)"
echo ""
done
echo "== 端口列表 =="
for zone in $(firewall-cmd --get-zones); do
echo "区域: $zone"
echo "端口: $(firewall-cmd --zone=$zone --list-ports)"
echo ""
done
echo "== 端口转发 =="
for zone in $(firewall-cmd --get-zones); do
echo "区域: $zone"
echo "转发: $(firewall-cmd --zone=$zone --list-forward-ports)"
echo ""
done
echo "===== 配置导出结束 ====="
} > "$export_path"
echo "配置已导出到 $export_path"
echo -n "按任意键继续..."
read -n 1
}
# 主循环
while true; do
show_menu
echo -n "请选择一个选项 [0-14]: "
read choice
case $choice in
0)
echo "退出..."
exit 0
;;
1)
show_status
;;
2)
start_firewall
;;
3)
stop_firewall
;;
4)
restart_firewall
;;
5)
open_port
;;
6)
close_port
;;
7)
list_ports
;;
8)
add_port_forward
;;
9)
remove_port_forward
;;
10)
list_port_forwards
;;
11)
add_service
;;
12)
remove_service
;;
13)
list_services
;;
14)
export_config
;;
*)
echo "无效的选项，请重试"
echo -n "按任意键继续..."
read -n 1
;;
esac
done 推荐本站淘宝优惠价购买喜欢的宝贝:
