以太网链路聚合典型配置举例

1.8.1  二层静态聚合配置举例

1. 组网需求

·            Device A与Device B通过各自的二层以太网接口GigabitEthernet1/0/1～GigabitEthernet1/0/3相互连接。

·            在Device A和Device B上分别配置二层静态链路聚合组，并实现设备间VLAN 10和VLAN 20分别互通。

2. 组网图

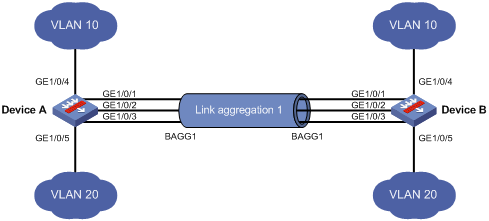

图1-5 二层静态聚合配置组网图



3. 配置步骤

(1)       配置Device A

# 创建VLAN 10，并将端口GigabitEthernet1/0/4加入到该VLAN中。

<DeviceA> system-view

[DeviceA] vlan 10

[DeviceA-vlan10] port gigabitethernet 1/0/4

[DeviceA-vlan10] quit

# 创建VLAN 20，并将端口GigabitEthernet1/0/5加入到该VLAN中。

[DeviceA] vlan 20

[DeviceA-vlan20] port gigabitethernet 1/0/5

[DeviceA-vlan20] quit

# 创建二层聚合接口1。

[DeviceA] interface bridge-aggregation 1

[DeviceA-Bridge-Aggregation1] quit

# 分别将端口GigabitEthernet1/0/1至GigabitEthernet1/0/3加入到聚合组1中。

[DeviceA] interface gigabitethernet 1/0/1

[DeviceA-GigabitEthernet1/0/1] port link-aggregation group 1

[DeviceA-GigabitEthernet1/0/1] quit

[DeviceA] interface gigabitethernet 1/0/2

[DeviceA-GigabitEthernet1/0/2] port link-aggregation group 1

[DeviceA-GigabitEthernet1/0/2] quit

[DeviceA] interface gigabitethernet 1/0/3

[DeviceA-GigabitEthernet1/0/3] port link-aggregation group 1

[DeviceA-GigabitEthernet1/0/3] quit

# 配置二层聚合接口1为Trunk端口，并允许VLAN 10和20的报文通过。

[DeviceA] interface bridge-aggregation 1

[DeviceA-Bridge-Aggregation1] port link-type trunk

[DeviceA-Bridge-Aggregation1] port trunk permit vlan 10 20

[DeviceA-Bridge-Aggregation1] quit

(2)       配置Device B

Device B的配置与Device A相似，配置过程略。
