基于 Curl 的 Zabbix API 调用

http://www.cnblogs.com/ruiy/p/curlCallZabbixAPI.html

https://www.zabbix.com/documentation/5.0/zh/manual/api/reference/configuration/export

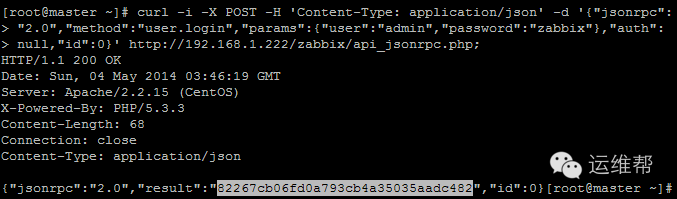

1：认证并取得加密字段

curl -i -X POST -H 'Content-Type: application/json' -d '{"jsonrpc":

"2.0","method":"user.login","params":{"user":"admin","password":"zabbix"},"auth":

null,"id":0}' http://192.168.1.222/zabbix/api_jsonrpc.php;

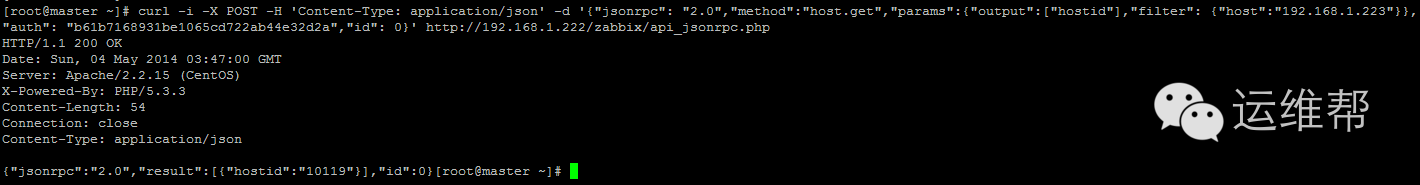

2：获取指定或所有监控主机的hostids

curl -i -X POST -H 'Content-Type: application/json' -d '{"jsonrpc": "2.0","method":"host.get","params":{"output":["hostid"],"filter": {"host":"192.168.1.223"}},"auth": "b61b7168931be1065cd722ab44e32d2a","id": 0}' http://192.168.1.222/zabbix/api_jsonrpc.php;

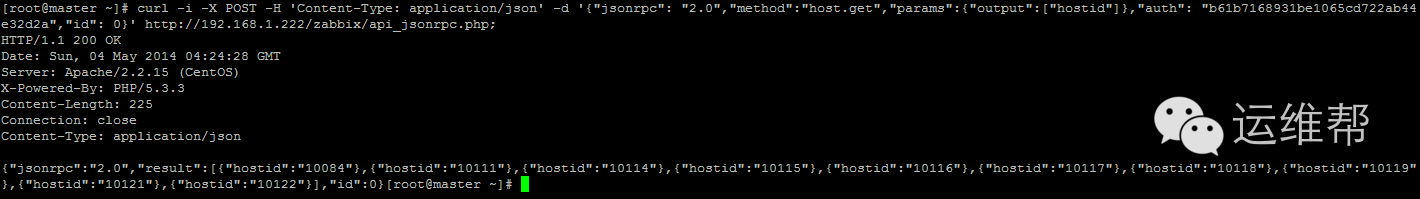

zabbix下所有监控主机hostids

curl -i -X POST -H 'Content-Type: application/json' -d '{"jsonrpc": "2.0","method":"host.get","params":{"output":["hostid"]},"auth": "b61b7168931be1065cd722ab44e32d2a","id": 0}'

http://192.168.1.222/zabbix/api_jsonrpc.php;

3：获得指定主机下指定监控项或是所有监控项itemids

curl -i -X POST -H 'Content-Type: application/json' -d '{"jsonrpc": "2.0","method":"item.get","params":{"output":"itemids","hostids":"10119","search":{"key_":"system.cpu.util[,idle]"}},"auth": "91aca8c1fe89c89c2e457ab18a28e79b","id": 0}' http://192.168.1.222/zabbix/api_jsonrpc.php;

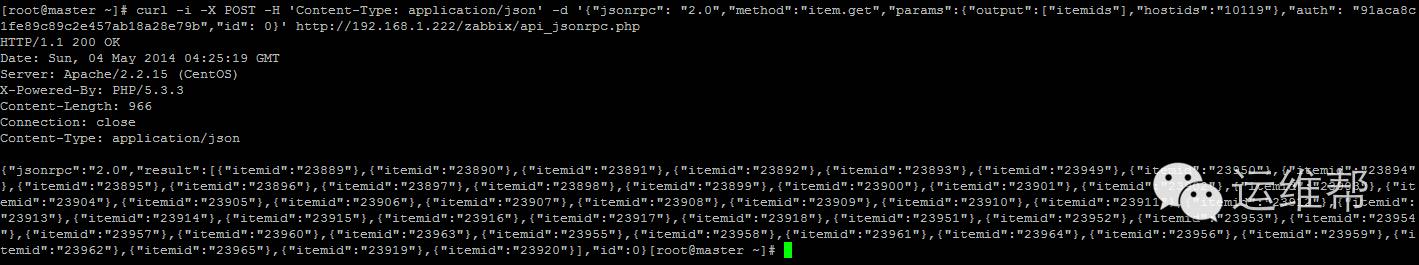

zabbix下指定主机的所有itemids

curl -i -X POST -H 'Content-Type: application/json' -d '{"jsonrpc": "2.0","method":"item.get","params":{"output":["itemids"],"hostids":"10119"},"auth": "91aca8c1fe89c89c2e457ab18a28e79b","id": 0}' http://192.168.1.222/zabbix/api_jsonrpc.php

4：获取指定监控项在指定时间段的值

获取指定itemids的所有历史数据;

curl -i -X POST -H 'Content-Type: application/json' -d '{"jsonrpc": "2.0","method":"history.get","params":{"history":0,"itemids":["23902"],"output":"extend"},"auth": "91aca8c1fe89c89c2e457ab18a28e79b","id": 0}' http://192.168.1.222/zabbix/api_jsonrpc.php

获取指定监控项itemids的指定时间段历史数据;

我们获取下2014-05-01到2014-05-03期间的数据语句如下

curl -i -X POST -H 'Content-Type: application/json' -d '{"jsonrpc": "2.0","method":"history.get","params":{"history":0,"itemids":["23902"],"time_from":"1398873600","time_till":"1399046400","output":"extend"},"auth": "91aca8c1fe89c89c2e457ab18a28e79b","id": 0}' http://192.168.1.222/zabbix/api_jsonrpc.php

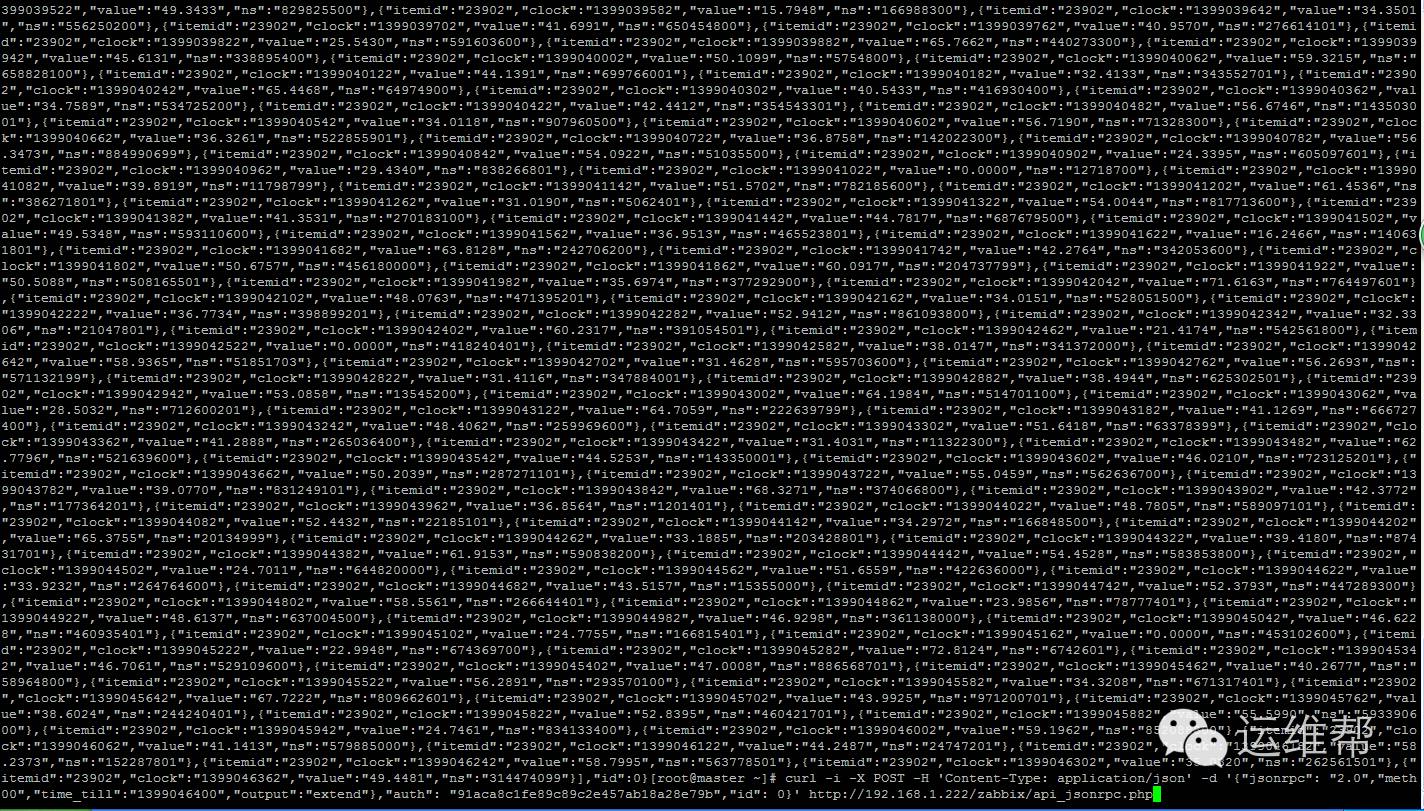

数据比较多,其凌乱,value就是我们要的值了;

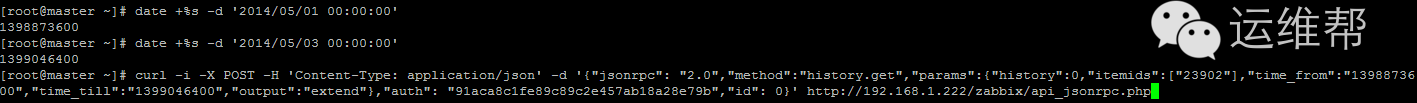

此种使用的是秒数需将字符串时间值(2014/05/01 --转换为自1970/1/1以来的秒数值)换算一下我在这里用shell简单搞下

5：抓指定时间点的值

curl -i -X POST -H 'Content-Type: application/json' -d '{"jsonrpc": "2.0","method":"history.get","params":{"history":0,"itemids":["23902"],"time_from":"1398873600","time_till":"1399046400","output":"extend","filter":{"clock":"1399026180"}},"auth": "91aca8c1fe89c89c2e457ab18a28e79b","id": 0}' http://192.168.1.222/zabbix/api_jsonrpc.php

看抓取的数据结构完全可以给他导到xml中;

zabbix API Object specifications without the 'draft' mark are stable and can be used for production purposes

curl模拟调用zabbix JSON-RPC格式

curl -i -X POST -H 'Content-Type: application/json' -d ‘api json语句’ zabbix-server--即我的测试机http://192.168.1.222/zabbix/api_jsonrpc.php;

来个模板吧,你copy此处到你的终端吧数据语句放到''中要是没问题的话即可返回你所要的数据

curl -i -X POST -H 'Content-Type: application/json' -d

你的json语句拷贝与此处;

' 你的zabbix服务器api 的url

Examples,都是Ruiy根据官网及相关文档改写亲测成功的,你仅需的就是修改下你的zabbix服务器API的URL即可;

获取监控主机信息
curl -i -X POST -H 'Content-Type:application/json' -d '{"jsonrpc":"2.0","method":"host.get","params":{"output":"extend"},"auth":"91aca8c1fe89c89c2e457ab18a28e79b","id":4 }' http://192.168.1.222/zabbix/api_jsonrpc.php
zabbix版本
curl -i -X POST -H 'Content-Type:application/json' -d '{"jsonrpc":"2.0","method":"apiinfo.version","params":{"output":"extend"},"auth":"91aca8c1fe89c89c2e457ab18a28e79b","id":1 }' http://192.168.1.222/zabbix/api_jsonrpc.php
获取auth加密字段
curl -i -X POST -H 'Content-Type:application/json' -d '{"jsonrpc":"2.0","method":"user.authenticate","params":{"user":"admin","password":"zabbix"},"auth":null,"id":0}' http://192.168.1.222/zabbix/api_jsonrpc.php
将"method":"user.authenticate"改成"method":"user.login";

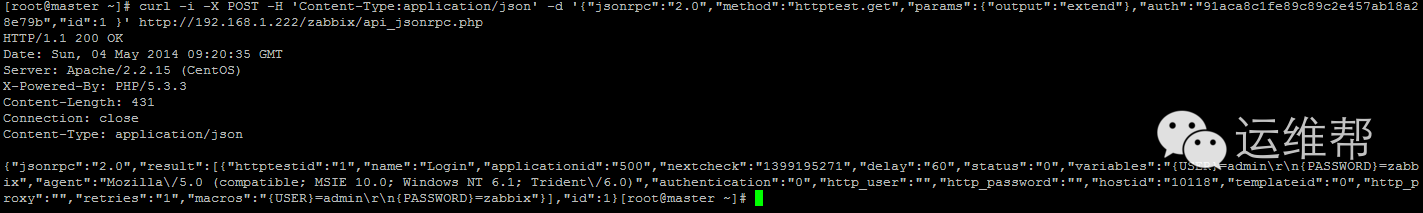

获取web scenario信息
curl -i -X POST -H 'Content-Type:application/json' -d '{"jsonrpc":"2.0","method":"httptest.get","params":{"output":"extend"},"auth":"91aca8c1fe89c89c2e457ab18a28e79b","id":1 }' http://192.168.1.222/zabbix/api_jsonrpc.php;

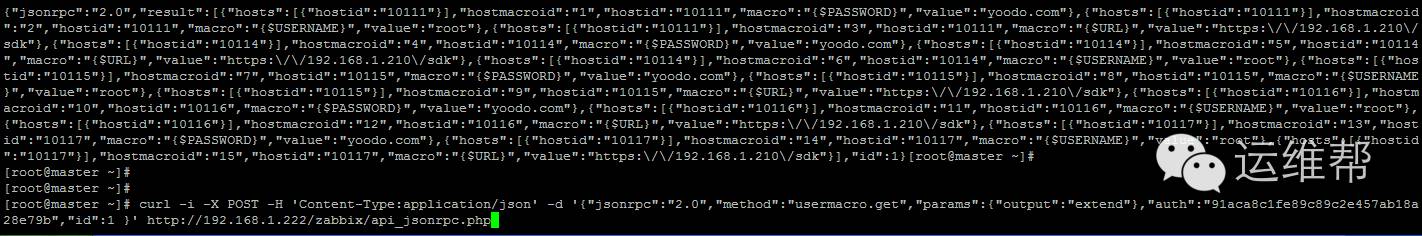

获取zabbix系统中以定义了的macro

curl -i -X POST -H 'Content-Type:application/json' -d '{"jsonrpc":"2.0","method":"usermacro.get","params": {"output":"extend"},"auth":"91aca8c1fe89c89c2e457ab18a28e79b","id":1 }' http://192.168.1.222/zabbix/api_jsonrpc.php

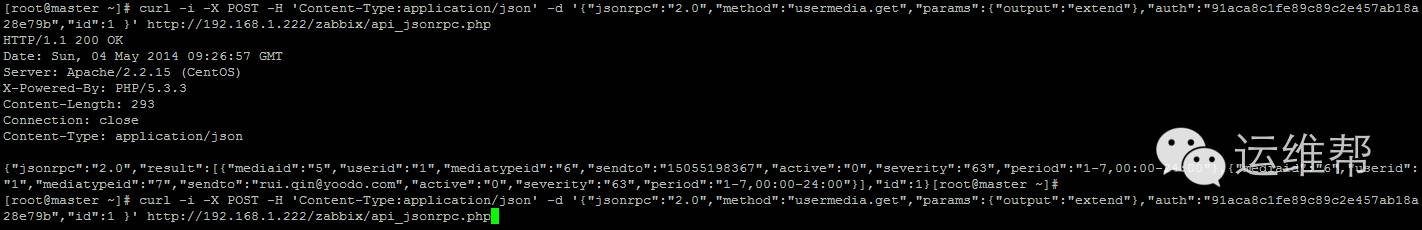

6. 告警介质

curl -i -X POST -H 'Content-Type:application/json' -d '{"jsonrpc":"2.0","method":"usermedia.get","params":{"output":"extend"},"auth":"91aca8c1fe89c89c2e457ab18a28e79b","id":1 }' http://192.168.1.222/zabbix/api_jsonrpc.php
