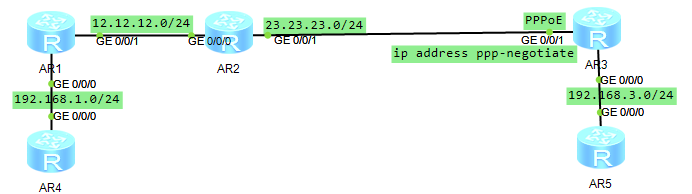

有关IPSec VPN的原理，这里就不展开了，我们直接上图上配置

华为：

#

ike proposal 1

 encryption-algorithm aes-cbc-128

 authentication-algorithm aes-xcbc-mac-96

#

ike peer 1 v2

 pre-shared-key cipher 12345@huawei

 ike-proposal 1

 local-address 12.12.12.1

 remote-address 23.23.23.3

#

ipsec proposal 1

 esp authentication-algorithm sha1

 esp encryption-algorithm aes-128

#

acl number 3000

 rule 10 permit ip source 192.168.1.0 0.0.0.255 destination 192.168.3.0 0.0.0.255

#

ipsec policy 1 1 isakmp

 security acl 3000

 ike-peer 1

 proposal 1

#

ip route-static 0.0.0.0 0.0.0.0 12.12.12.2

#

--------------------------------------------------------------------------------------------------------------------------

H3C：

#

ike proposal 1

 encryption-algorithm aes-cbc-128

#

ike keychain 1

 match local address 12.12.12.1

 pre-shared-key address 23.23.23.3 255.255.255.0 key cipher $c$3$4UeEAf40bV9Vz/Ixl0Wkx2s0j1ZDIH4EY6vQAg==

#

ike profile 1

 keychain 1

 local-identity address 12.12.12.1

 match remote identity address 23.23.23.3 255.255.255.0

 proposal 1

#

ipsec transform-set 1

 esp encryption-algorithm aes-cbc-128

 esp authentication-algorithm aes-xcbc-mac

#

acl advanced 3000

 rule 10 permit ip source 192.168.1.0 0.0.0.255 destination 192.168.3.0 0.0.0.255

#

ipsec policy 1 1 isakmp

 transform-set 1

 security acl 3000

 remote-address 23.23.23.3

 ike-profile 1

===============================================================================

二、不固定IP，主模式

----------------------------------------------------------

华为：

AR1：

ipsec proposal huawei

#

ike proposal 1

#

ike peer branch v1

 pre-shared-key simple huawei

 ike-proposal 1

 local-address 12.12.12.1

#

ipsec policy-template branch 1

 ike-peer branch

 proposal huawei

#

ipsec policy-template branch 1

 ike-peer branch

 proposal huawei

#

ipsec policy branch_policy 1 isakmp template branch

#

interface GigabitEthernet0/0/1

 ip address 12.12.12.1 255.255.255.0

 ipsec policy branch_policy

#
