协议与模式分类
esp 和 ah 的分类：
数据的安全性：ESP有机密性；AH无机密性
场景：ESP适合公网场景；AH适合内网 / 私网场景
（数据的安全性主要依赖于传输端之间需要做认证）
传输模式和隧道模式的分类：
传输端的可达性：传输模式有可达性；隧道模式无可达性
场景：传输模式（私网数据通过公网传输；异种网络之间通过其他网络传输）；隧道模式（专线，隧道已做，本身路由可达）
ipsec配置（路由器）
静态路由协议下的IPSec

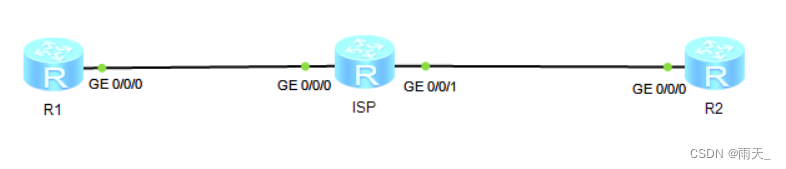

保证基础网络可达 [r1]int g0/0/0 [r1-GigabitEthernet0/0/0]ip add 100.1.1.1 24 [r1]ip route-static 0.0.0.0 0 100.1.1.2 [ISP]int g0/0/0 [ISP-GigabitEthernet0/0/0]ip add 100.1.1.2 24 [ISP]int g0/0/1 [ISP-GigabitEthernet0/0/1]ip ad 100.1.2.1 24 [r2]int g0/0/0 [r2-GigabitEthernet0/0/0]ip add 100.1.2.2 24 [r2]ip route-static 0.0.0.0 0 100.1.2.1 [r1]int LoopBack 0 [r1-LoopBack0]ip add 172.16.10.1 24 [r2]int LoopBack 0 [r2-LoopBack0]ip add 172.16.1.1 24
（1）配置 IKE SA
<1> 安全提议
[r1]ike proposal 1 // 安全提议编号 [r1-ike-proposal-1]encryption-algorithm 3des-cbc // 加密算法（3des） [r1-ike-proposal-1]authentication-algorithm sha1 // 认证算法（sha1） [r1-ike-proposal-1]authentication-method pre-share // 认证模式（预共享：pre） [r1-ike-proposal-1]dh group2 // 非对称加密算法强度 [r1]dis ike proposal --- 查看未显示以及默认配置 Number of IKE Proposals: 2 ------------------------------------------- IKE Proposal: 1 Authentication method : pre-shared Authentication algorithm : SHA1 Encryption algorithm : 3DES-CBC DH group : MODP-1024 SA duration : 3600 PRF : PRF-HMAC-SHA ------------------------------------------- ------------------------------------------- IKE Proposal: Default Authentication method : pre-shared Authentication algorithm : SHA1 Encryption algorithm : DES-CBC DH group : MODP-768 SA duration : 86400 PRF : PRF-HMAC-SHA ------------------------------------------- [r2]ike proposal 1 [r2-ike-proposal-1]encryption-algorithm 3des-cbc [r2-ike-proposal-1]dh group2 [r2-ike-proposal-1]sa duration 3600
PRF：完美向前法。
<2> 安全认证
[r1]ike peer 12 v1 // ike认证名称和版本 [r1-ike-peer-12]exchange-mode main // 模式选择（默认主模式） [r1-ike-peer-12]pre-shared-key cipher 234 // 编译预共享密钥 [r1-ike-peer-12]ike-proposal 1 // 调用安全提议 [r1-ike-peer-12]remote-address 100.1.2.2 // 调用远端地址 [r2]ike peer 12 v1 [r2-ike-peer-12]ike-proposal 1 [r2-ike-peer-12]pre-shared-key cipher 234 [r2-ike-peer-12]remote-address 100.1.1.1 [r2-ike-peer-12]exchange-mode main
（2）配置IPSec SA 安全提议信息
[r1]ipsec proposal 1 // ipsec提议 [r1-ipsec-proposal-1]transform esp // 选择传输协议 [r1-ipsec-proposal-1]esp authentication-algorithm sha2-512 // 认证算法 [r1-ipsec-proposal-1]esp encryption-algorithm aes-128 // 加密算法 [r1-ipsec-proposal-1]encapsulation-mode tunnel // 封装模式（隧道模式） [r1]dis ipsec proposal --- 查看 Number of proposals: 1 IPSec proposal name: 1 Encapsulation mode: Tunnel Transform : esp-new ESP protocol : Authentication SHA2-HMAC-512 Encryption AES-128 [r2]ipsec proposal 1 [r2-ipsec-proposal-1]transform esp [r2-ipsec-proposal-1]encapsulation-mode tunnel [r2-ipsec-proposal-1]esp authentication-algorithm sha2-512 [r2-ipsec-proposal-1]esp encryption-algorithm aes-128
（3）定义加密流量（感兴趣流）
[r1]acl 3000 [r1-acl-adv-3000]rule 5 permit ip source 172.16.10.1 0.0.0.0 destination 172.16.1.1 0.0.0.0 [r2]acl 3000 [r2-acl-adv-3000]rule 5 permit ip source 172.16.1.1 0.0.0.0 destination 172.16.10.1 0.0.0.0
（4）配置安全策略集
[r1]ipsec policy k 10 isakmp --- 定义名为k，序列号为10，运用isakmp（IKE）进行协商 [r1-ipsec-policy-isakmp-k-10]ike-peer 12 // 关联ike-peer [r1-ipsec-policy-isakmp-k-10]security acl 3000 // 关联感兴趣流 [r1-ipsec-policy-isakmp-k-10]pfs dh-group2 // pfs：完美向前法 [r2]ipsec policy k 10 isakmp [r2-ipsec-policy-isakmp-k-10]ike-peer 12 [r2-ipsec-policy-isakmp-k-10]proposal 1 [r2-ipsec-policy-isakmp-k-10]security acl 3000 [r2-ipsec-policy-isakmp-k-10]pfs dh-group2
（5）接口调用安全策略集
[r1]int g0/0/0 [r1-GigabitEthernet0/0/0]ipsec policy k [r2]int g0/0/0 [r2-GigabitEthernet0/0/0]ipsec policy k

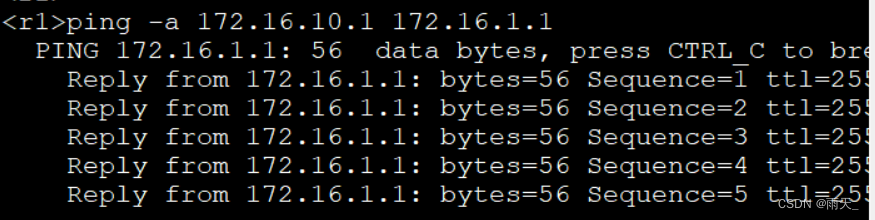

进行触发：
（6）查看安全联盟建立情况
<r1>dis ike sa Conn-ID Peer VPN Flag(s) Phase --------------------------------------------------------------- 2 100.1.2.2 0 RD|ST 2 1 100.1.2.2 0 RD|ST 1 Flag Description: RD--READY ST--STAYALIVE RL--REPLACED FD--FADING TO--TIMEOUT HRT--HEARTBEAT LKG--LAST KNOWN GOOD SEQ NO. BCK--BACKED UP <r1>dis ipsec sa [Outbound ESP SAs] SPI: 1407390962 (0x53e314f2) Proposal: ESP-ENCRYPT-AES-128 SHA2-512-256 SA remaining key duration (bytes/sec): 1887329280/2740 Max sent sequence-number: 5 UDP encapsulation used for NAT traversal: N [Inbound ESP SAs] SPI: 3197321182 (0xbe933fde) Proposal: ESP-ENCRYPT-AES-128 SHA2-512-256 SA remaining key duration (bytes/sec): 1887436380/2740 Max received sequence-number: 5 Anti-replay window size: 32 UDP encapsulation used for NAT traversal: N
动态路由协议下的IPSec
新建环回 [r1]int LoopBack 0 [r1-LoopBack1]ip ad 1.1.1.1 24 gre下的隧道配置 [r1]int t0/0/0 [r1-Tunnel0/0/0]tunnel-protocol gre [r1-Tunnel0/0/0]source g0/0/0 [r1-Tunnel0/0/0]destination 100.1.2.2 [r1-Tunnel0/0/0]ip add 10.1.1.1 24 [r2]int lo 1 [r2-LoopBack1]ip add 2.2.2.2 24 [r2]int t0/0/0 [r2-Tunnel0/0/0]tunnel-protocol gre [r2-Tunnel0/0/0]source g0/0/0 [r2-Tunnel0/0/0]destination 100.1.1.1 [r2-Tunnel0/0/0]ip add 10.1.1.2 24 ospf配置 [r1]ospf 1 [r1-ospf-1]a 0 [r1-ospf-1-area-0.0.0.0]network 1.1.1.1 0.0.0.0 [r1-ospf-1-area-0.0.0.0]network 10.1.1.1 0.0.0.0 [r2]ospf 1 [r2-ospf-1]a 0 [r2-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0 [r2-ospf-1-area-0.0.0.0]network 10.1.1.2 0.0.0.0 查看邻居建立情况 [r1]dis ospf peer brief OSPF Process 1 with Router ID 100.1.1.1 Peer Statistic Information ---------------------------------------------------------------------------- Area Id Interface Neighbor id State 0.0.0.0 Tunnel0/0/0 100.1.2.2 Full ----------------------------------------------------------------------------
（1）配置 IKE SA
<1> 安全提议
[r1]ike proposal 10 [r1-ike-proposal-10]encryption-algorithm 3des-cbc [r1-ike-proposal-10]authentication-algorithm sha1 [r1-ike-proposal-10]authentication-method pre-share [r1-ike-proposal-10]dh group2 [r2]ike proposal 10 [r2-ike-proposal-10]encryption-algorithm 3des-cbc [r2-ike-proposal-10]authentication-algorithm sha1 [r2-ike-proposal-10]authentication-method pre-share [r2-ike-proposal-10]dh group2
<2> 安全认证
[r1]ike peer gre v1 [r1-ike-peer-gre]pre-shared-key simple aaa // 设置预共享密钥（simple：本地不加密） [r1-ike-peer-gre]exchange-mode aggressive // 采用野蛮模式 [r1-ike-peer-gre]local-id-type name // 采用name定义 [r1-ike-peer-gre]remote-name a1 // 远端name为a1 [r1-ike-peer-gre]remote-address 100.1.2.2 // 远端IP [r1-ike-peer-gre]ike-proposal 10 // 引用ike [r1]ike local-name a1 // 全局定义本地name [r2]ike peer gre v1 [r2-ike-peer-gre]ike-proposal 10 [r2-ike-peer-gre]pre-shared-key simple aaa [r2-ike-peer-gre]remote-address 100.1.1.1 [r2-ike-peer-gre]exchange-mode aggressive [r2-ike-peer-gre]local-id-type name [r2-ike-peer-gre]remote-name a1
（2）配置ipsec sa 的安全提议信息
[r1]ipsec proposal gre [r1-ipsec-proposal-gre]encapsulation-mode transport [r2]ipsec proposal gre [r2-ipsec-proposal-gre]encapsulation-mode transport
（3）定义加密流量（感兴趣流）
[r1]acl 3001 [r1-acl-adv-3001]rule 10 permit gre source 100.1.1.1 0 destination 100.1.2.2 0 [r2]acl 3001 [r2-acl-adv-3001]rule 10 permit gre source 100.1.2.2 0 destination 100.1.1.1 0
（4）配置安全策略集
[r1]ipsec policy gre 10 isakmp [r1-ipsec-policy-isakmp-gre-10]ike-peer gre [r1-ipsec-policy-isakmp-gre-10]proposal gre [r1-ipsec-policy-isakmp-gre-10]security acl 3001 [r2]ipsec policy gre 10 isakmp [r2-ipsec-policy-isakmp-gre-10]security acl 3001 [r2-ipsec-policy-isakmp-gre-10]proposal gre [r2-ipsec-policy-isakmp-gre-10]ike-peer gre
（5）接口调用安全策略集
[r1]int g0/0/0 [r1-GigabitEthernet0/0/0]ipsec policy gre [r2]int g0/0/0 [r2-GigabitEthernet0/0/0]ipsec policy gre

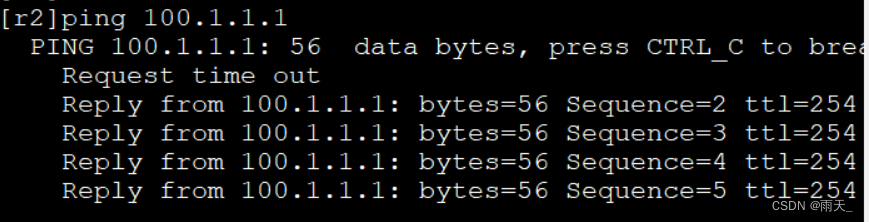

ping进行触发：

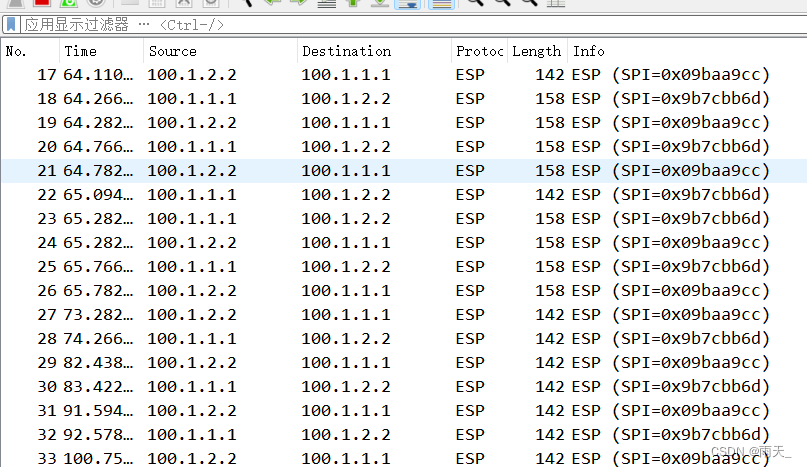

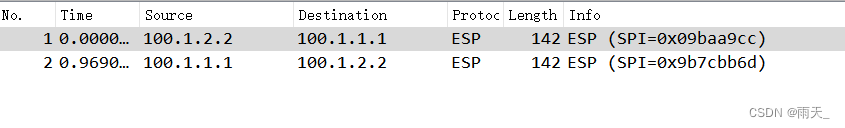

流量已加密

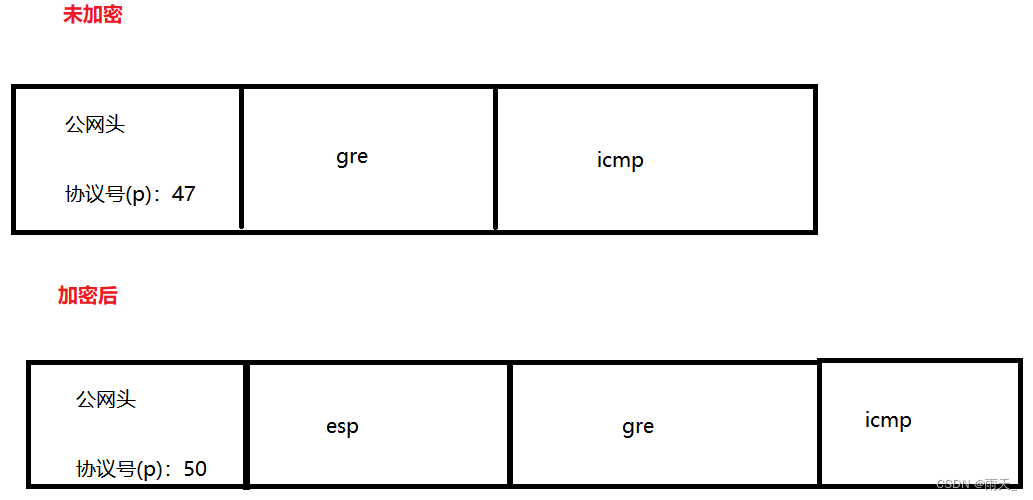

（6）分析
